Nylon PA66 Cage Bearing For Bulk Handling Systems

Поделиться с:
    Вид оплаты: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Количество минимального заказа: 100 Piece/Pieces
    Срок поставки: 5 дней

Базовая информация

Модель: Pa66 Cage Bearing

выравнивание: Несущий подшипник

Количество строк: Один

Направление нагрузки: Радиальный подшипник

Material: Chrome Steel GCr15

Precision Rating: P0 P6 P5 P4

Cage: Reinforced KA Nylon

Sealed Type: RS/2RS RZ/2RZ

Lubrication: Great Wall Grease(SINOPEC)

Feature: Seize-Resistant

Bore Diameter: 20mm

Outside Diameter: 47mm

Width: 15mm

Weight: 0.106kg

Additional Info

Подробности Упаковки: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

производительность: 50000 Pieces/day

марка: XKTE/OEM

транспорт: Ocean,Land,Air,Express

Место происхождения: Shandong,China

Способность поставки: 50000 Pieces/Day

Сертификаты : ISO9001:2015

Код ТН ВЭД: 8482102000

Порт: Qingdao,Shenzhen,Guangzhou

Описание продукта

In mining Bulk Handling Systems, reinforced nylon/polyamide cage is frequently used in underground mining machine to prevent sparking between the cage and the rolling components. Ball bearing for mining conveyor usually use nylon material cage bearings. KA in Chinese market or TN/TNG/TNGH. The material of nylon is reinforced polyamide 66, it is an high quality material due to its high elasticity, minimal weight and excellent running properties, all of which have a positive impact on the service life of rolling ball bearings. Effectively prevent static electricity and seizeing. keep the frame of the rolling contact surface smooth, have little friction, so the heat bearing and friction is very low.


Nylon Cage Bearing

XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Special: Our KA(Nylon retainer) series bearings Obtained MA certification, safety certificate of approval for mining products (rollers) in China. With good performance of anti-seize and anti-static.


Ma Certificate

Clearance:

The selection of sealed nylon/polyamide cage is crucial to ball bearing with one(KA/TN-RS) or double seals(KA/TN-2RS), while the material of nylon cage must be pure and has enough toughness and strength, because the cage will get very soft if it is made of bad material or mixed material, thus to make no anti-stuck performance within the bearing. To get safety certificate for coal mining products must use nylon cage bearing.

Bearing Clearance

Conveyor idler roller usually need large clearance bearing such as C3/C4


Bulk Material Handling Belt Conveyor


Types of nylon cage ball bearing:

Type 1. One seal Nylon cage ball bearing(RS/RZ):

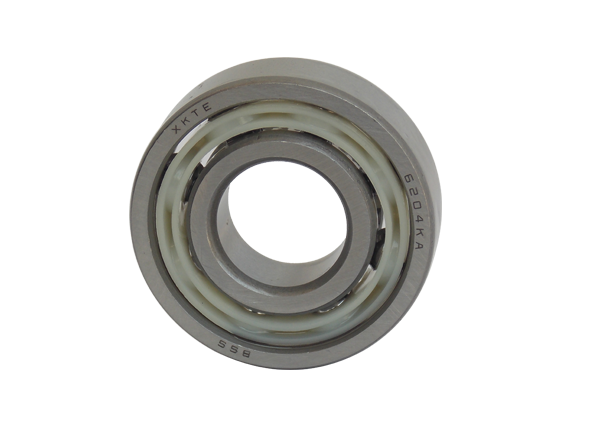

6204kaz Bearing


6204kaz Nylon Cage Bearing


Type 2. Double Rubber Seals Nylon cage bearing(2RS/2RZ)

Rs Rz Nylon Cage Ball Bearing


Feature of our conveyor idler roller bearing (Unique Design for Mining conveyor):


1. reinforced nylon retainer, it has good low noise properties and better sliding characteristics

2. very good corrosion resistance

3. a wide temperature range

4. Product tested by National Coal Science Institute and Provincial Quality Inspection Center. mining standard in China.

5. Good toughness and strength, good anti-seize performance, constantly used in dusty environment and underground environment.

Nylon Cage Ball Bearing Feature



The design of Ductile crown structure of retainer can effectively remove stuck dust objects

Nylon Cage Bearing Dust


Super Finished Surface Technology

Dimensions such as the outer and inner diameters and the width are ground to micrometer (one-thousandth of a millimeter) precision, as is the groove, a key internal structure formed between the inner and outer rings in which balls run.

Super Finished Surface



Thicker Inner & Outer Ring

The ring is the main part and the important part of the idler roller bearing. Best idler roller bearing has deep groove ball, and large clearance. But deep groove doesn`t mean to dig the channel with a simple way of enlarge the steel ball. The thickness of the bearing is certain, so to get the ball big and the groove deep will shorten service life. Our XKTE bearing uses way of thickening ring to get the standard of deep groove and large clearance, improves the anti-stuck performance, and effectively increases the service life.

Thicker Inner Outer Rings



Other Main Products for idler:

6200/6300 series deep groove ball bearing

6200/6300 series is well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.

6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material  Chrome Steel GCr15

Types:

Nylon cage bearing: 6204KA---6308KA 6204KA/C3---6308KA/C3 6204KA/C4---6308KA/C4

Rubber Sealed bearing: 6204-2RS/RS---6310-2RS 6204-2RZ---6310-2RZ 180204---180308

Shielded Ball Bearing: 60204---60310 6204KA-Z---6308KA-Z 6204TN-Z---6308TN-Z 6204ZZ---6310ZZ


We will consider all the applicable variables in your application, such as extreme temperature variation, dust and dirt, as well as noise and vibration requirements.


Professional Conveyor Bearing Manufacturer for Conveyor Idler Roller, Impact idler, Troughing idler and pulley bearing for bend pulley, drive pulley etc.


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.




About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt conveyor roller bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


To be the first class, to do the best quality, to make users satisfied, to ensure customers relieved, are our enterprise purposes. Welcome bearing dealers` and conveyor idler manufacturers contact from all over the world, and become our partner.
Factory New


Packing:

Packing New
